Please allow at least 4mm in your cutting allowance calculations for the width of the saw cut
We use table saws and horizontal band-saws, so edges will have a sawn finish
We only use sawing equipment, so we are unable to offer high precision items
Tolerances are +2mm to minus 0mm
We aim to cut as squarely as possible although incoming materials are sometimes out of square
We are unable to cut or machine shapes but we are happy to obtain a custom quotation for machined shapes or parts (please call us on 0114 2560889)
How to advise your sizes:
Please checkout your basket/cart
Fill in your details as usual on the checkout page
At section 5 of our checkout page, there's a "customer notes" box for you
Please enter your sizes and any notes for us there
Acetal Sheet Tolerances
Manufacturers produce engineering plastics that are slightly oversize in either diameter and/or thickness.
This oversize tolerance, which is listed in the tables below, is provided to assist customers to produce very accurate items within the size shown and remove any minor surface imperfection.
Nominal Thickness
Tolerance in mm
1
-0.11 to +0.11
3
-0.17 to +0.17
4
-0.2 to +0.2
5
-0.23 to +0.23
6
-0.26 to +0.26
Nominal Thickness
Tolerance in mm
8
-0.32 to +0.32
10
-0.38 to +0.38
12
-0.44 to +0.44
15
-0.53 to +0.53
20
-0.68 to +0.68

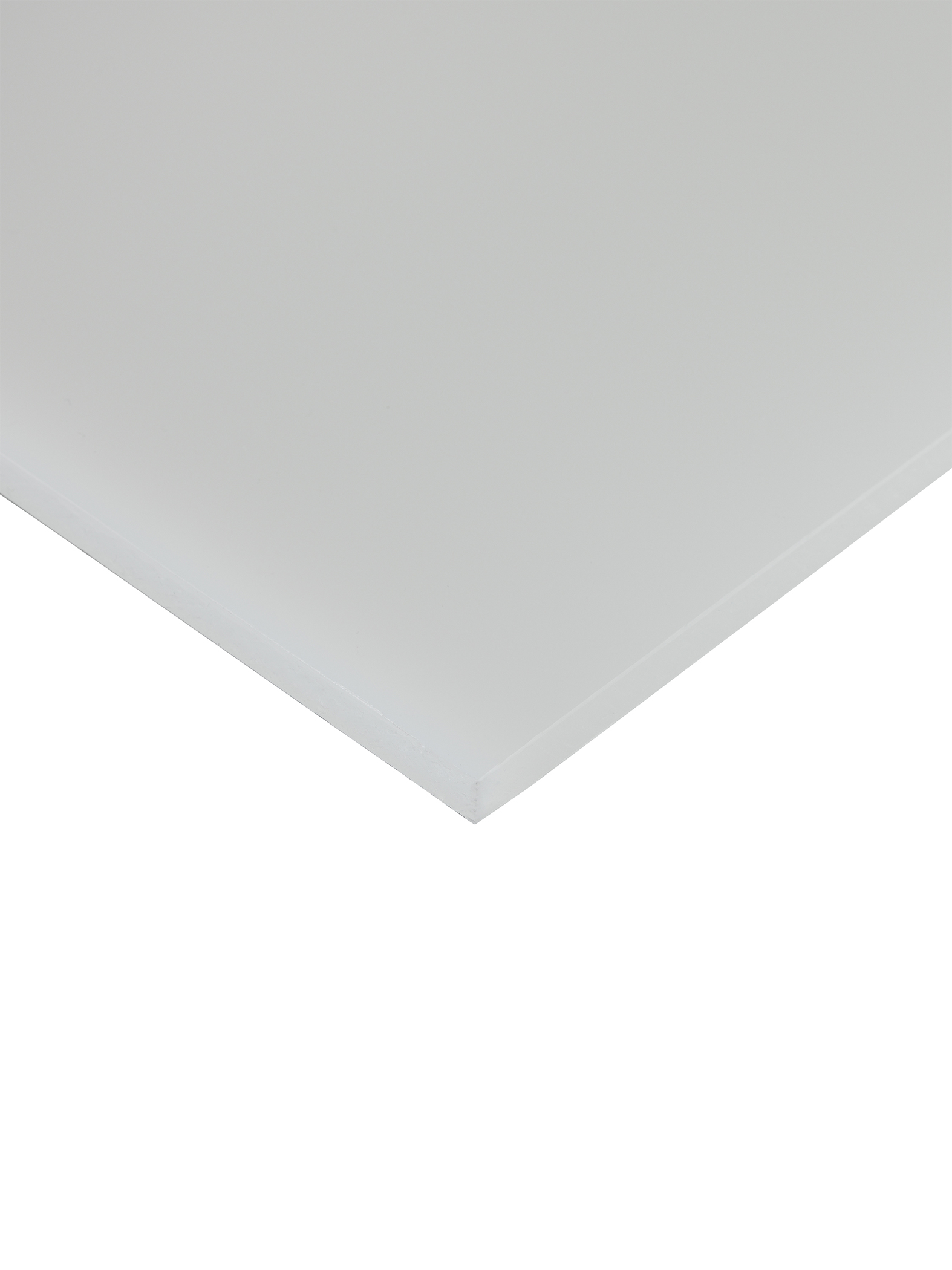

PVDF Sheet
Product Information
Product Full Identity:
PVDF (Polyvinylidene Fluoride)
Enhance your projects with our premium PVDF (Polyvinylidene Fluoride) sheets, known for their exceptional chemical resistance, durability, and versatility. PVDF is a high-performance thermoplastic that offers a unique combination of properties, making it ideal for a wide range of applications, from chemical processing to electrical insulation.
Key Features
Superior Chemical Resistance: PVDF is highly resistant to a wide range of chemicals, acids, and solvents, making it perfect for use in harsh environments.
Outstanding Durability: With excellent impact resistance and mechanical strength, PVDF can withstand demanding conditions without compromising performance.
High Temperature Tolerance: PVDF maintains its properties even in high-temperature environments, with a working range up to 150°C (302°F).
UV and Weather Resistance: PVDF is highly resistant to UV radiation and weathering, ensuring longevity in outdoor applications.
Low Smoke and Flame Properties: PVDF exhibits low smoke generation and is inherently flame retardant, making it a safe choice for a variety of industries.
Applications
Chemical Processing Equipment: Ideal for tanks, piping systems, and other components exposed to corrosive chemicals.
Electrical Insulation: PVDF's excellent dielectric properties make it suitable for wire and cable insulation, as well as other electrical applications.
Water Treatment: Suitable for use in membranes and filtration systems due to its resistance to chemicals and biofouling.
