Select the Colour you require:
Please select the product you require
PTFE Rod 4mm dia x 500mm
Our Price: £0.67 (£0.80 inc VAT)
PTFE Rod 5mm dia x 500mm
Our Price: £1.05 (£1.26 inc VAT)
PTFE Rod 4mm dia x 1000mm
Our Price: £1.23 (£1.48 inc VAT)
PTFE Rod 6mm dia x 500mm
Our Price: £1.50 (£1.80 inc VAT)
PTFE Rod 5mm dia x 1000mm
Our Price: £1.90 (£2.28 inc VAT)
PTFE Rod 4mm dia x 2000mm
Our Price: £2.33 (£2.80 inc VAT)
PTFE Rod 8mm dia x 500mm
Our Price: £2.61 (£3.13 inc VAT)
PTFE Rod 6mm dia x 1000mm
Our Price: £2.73 (£3.28 inc VAT)
PTFE Rod 5mm dia x 2000mm
Our Price: £3.62 (£4.34 inc VAT)
PTFE Rod 10mm dia x 500mm
Our Price: £3.93 (£4.72 inc VAT)
PTFE Rod 8mm dia x 1000mm
Our Price: £4.75 (£5.70 inc VAT)
PTFE Rod 6mm dia x 2000mm
Our Price: £5.21 (£6.25 inc VAT)
PTFE Rod 12mm dia x 500mm
Our Price: £5.79 (£6.95 inc VAT)
PTFE Rod 10mm dia x 1000mm
Our Price: £7.14 (£8.57 inc VAT)
PTFE Rod 15mm dia x 500mm
Our Price: £8.88 (£10.66 inc VAT)
PTFE Rod 8mm dia x 2000mm
Our Price: £9.04 (£10.85 inc VAT)
PTFE Rod 12mm dia x 1000mm
Our Price: £10.52 (£12.62 inc VAT)
PTFE Rod 25mm dia x 250mm
Our Price: £12.85 (£15.42 inc VAT)
PTFE Rod 10mm dia x 2000mm
Our Price: £13.60 (£16.32 inc VAT)
PTFE Rod 22mm dia x 500mm
Our Price: £14.12 (£16.94 inc VAT)
PTFE Rod 20mm dia x 500mm
Our Price: £15.54 (£18.65 inc VAT)
PTFE Rod 15mm dia x 1000mm
Our Price: £16.14 (£19.37 inc VAT)
PTFE Rod 30mm dia x 250mm
Our Price: £18.54 (£22.25 inc VAT)
PTFE Rod 12mm dia x 2000mm
Our Price: £20.04 (£24.05 inc VAT)
PTFE Rod 25mm dia x 500mm
Our Price: £23.37 (£28.04 inc VAT)
PTFE Rod 35mm dia x 250mm
Our Price: £25.03 (£30.04 inc VAT)
PTFE Rod 22mm dia x 1000mm
Our Price: £25.67 (£30.80 inc VAT)
PTFE Rod 20mm dia x 1000mm
Our Price: £28.26 (£33.91 inc VAT)
PTFE Rod 15mm dia x 2000mm
Our Price: £30.75 (£36.90 inc VAT)
PTFE Rod 40mm dia x 250mm
Our Price: £32.64 (£39.17 inc VAT)
PTFE Rod 30mm dia x 500mm
Our Price: £33.70 (£40.44 inc VAT)
PTFE Rod 45mm dia x 250mm
Our Price: £41.44 (£49.73 inc VAT)
PTFE Rod 25mm dia x 1000mm
Our Price: £44.51 (£53.41 inc VAT)
PTFE Rod 35mm dia x 500mm
Our Price: £45.51 (£54.61 inc VAT)
PTFE Rod 22mm dia x 2000mm
Our Price: £48.89 (£58.67 inc VAT)
PTFE Rod 50mm dia x 250mm
Our Price: £51.30 (£61.56 inc VAT)
PTFE Rod 20mm dia x 2000mm
Our Price: £53.82 (£64.58 inc VAT)
PTFE Rod 55mm dia x 250mm
Our Price: £58.21 (£69.85 inc VAT)
PTFE Rod 40mm dia x 500mm
Our Price: £59.35 (£71.22 inc VAT)
PTFE Rod 30mm dia x 1000mm
Our Price: £64.20 (£77.04 inc VAT)
PTFE Rod 60mm dia x 250mm
Our Price: £73.25 (£87.90 inc VAT)
PTFE Rod 45mm dia x 500mm
Our Price: £75.34 (£90.41 inc VAT)
PTFE Rod 25mm dia x 2000mm
Our Price: £84.79 (£101.75 inc VAT)
PTFE Rod 65mm dia x 250mm
Our Price: £85.86 (£103.03 inc VAT)
PTFE Rod 35mm dia x 1000mm
Our Price: £86.68 (£104.02 inc VAT)
PTFE Rod 50mm dia x 500mm
Our Price: £93.27 (£111.92 inc VAT)
PTFE Rod 70mm dia x 250mm
Our Price: £99.54 (£119.45 inc VAT)
PTFE Rod 55mm dia x 500mm
Our Price: £105.83 (£127.00 inc VAT)
PTFE Rod 40mm dia x 1000mm
Our Price: £113.05 (£135.66 inc VAT)
PTFE Rod 75mm dia x 250mm
Our Price: £114.41 (£137.29 inc VAT)
PTFE Rod 30mm dia x 2000mm
Our Price: £122.28 (£146.74 inc VAT)
PTFE Rod 80mm dia x 250mm
Our Price: £129.64 (£155.57 inc VAT)
PTFE Rod 60mm dia x 500mm
Our Price: £133.18 (£159.82 inc VAT)
PTFE Rod 45mm dia x 1000mm
Our Price: £143.51 (£172.21 inc VAT)
PTFE Rod 65mm dia x 500mm
Our Price: £156.11 (£187.33 inc VAT)
PTFE Rod 90mm dia x 250mm
Our Price: £165.08 (£198.10 inc VAT)
PTFE Rod 35mm dia x 2000mm
Our Price: £165.11 (£198.13 inc VAT)
PTFE Rod 50mm dia x 1000mm
Our Price: £177.66 (£213.19 inc VAT)
PTFE Rod 70mm dia x 500mm
Our Price: £180.98 (£217.18 inc VAT)
PTFE Rod 55mm dia x 1000mm
Our Price: £201.59 (£241.91 inc VAT)
PTFE Rod 100mm dia x 250mm
Our Price: £203.78 (£244.54 inc VAT)
PTFE Rod 75mm dia x 500mm
Our Price: £208.01 (£249.61 inc VAT)
PTFE Rod 40mm dia x 2000mm
Our Price: £215.33 (£258.40 inc VAT)
PTFE Rod 80mm dia x 500mm
Our Price: £235.71 (£282.85 inc VAT)
PTFE Rod 110mm dia x 250mm
Our Price: £247.11 (£296.53 inc VAT)
PTFE Rod 60mm dia x 1000mm
Our Price: £253.67 (£304.40 inc VAT)
PTFE Rod 45mm dia x 2000mm
Our Price: £273.36 (£328.03 inc VAT)
PTFE Rod 65mm dia x 1000mm
Our Price: £297.35 (£356.82 inc VAT)
PTFE Rod 90mm dia x 500mm
Our Price: £300.14 (£360.17 inc VAT)
PTFE Rod 50mm dia x 2000mm
Our Price: £338.40 (£406.08 inc VAT)
PTFE Rod 70mm dia x 1000mm
Our Price: £344.72 (£413.66 inc VAT)
PTFE Rod 120mm dia x 250mm
Our Price: £355.33 (£426.40 inc VAT)
PTFE Rod 100mm dia x 500mm
Our Price: £370.51 (£444.61 inc VAT)
PTFE Rod 55mm dia x 2000mm
Our Price: £383.97 (£460.76 inc VAT)
PTFE Rod 75mm dia x 1000mm
Our Price: £396.21 (£475.45 inc VAT)
PTFE Rod 80mm dia x 1000mm
Our Price: £448.97 (£538.76 inc VAT)
PTFE Rod 110mm dia x 500mm
Our Price: £449.29 (£539.15 inc VAT)
PTFE Rod 60mm dia x 2000mm
Our Price: £483.18 (£579.82 inc VAT)
PTFE Rod 65mm dia x 2000mm
Our Price: £566.39 (£679.67 inc VAT)
PTFE Rod 90mm dia x 1000mm
Our Price: £571.70 (£686.04 inc VAT)
PTFE Rod 120mm dia x 500mm
Our Price: £646.06 (£775.27 inc VAT)
PTFE Rod 70mm dia x 2000mm
Our Price: £656.60 (£787.92 inc VAT)
PTFE Rod 100mm dia x 1000mm
Our Price: £705.73 (£846.88 inc VAT)
PTFE Rod 75mm dia x 2000mm
Our Price: £754.69 (£905.63 inc VAT)
PTFE Rod 80mm dia x 2000mm
Our Price: £855.17 (£1,026.20 inc VAT)
PTFE Rod 110mm dia x 1000mm
Our Price: £855.79 (£1,026.95 inc VAT)
PTFE Rod 90mm dia x 2000mm
Our Price: £1,088.96 (£1,306.75 inc VAT)
PTFE Rod 120mm dia x 1000mm
Our Price: £1,230.58 (£1,476.70 inc VAT)
PTFE Rod 100mm dia x 2000mm
Our Price: £1,344.25 (£1,613.10 inc VAT)
PTFE Rod 110mm dia x 2000mm
Our Price: £1,630.08 (£1,956.10 inc VAT)
PTFE Rod 120mm dia x 2000mm
Our Price: £2,343.96 (£2,812.75 inc VAT)
Spend £50 or More (excluding VAT)
Get it Delivered Free* (*Details Here)
Spend £100 or More (excluding VAT)
Get a Nice 5% Discount
Spend £250 or More (excluding VAT)
Get a Bigger 10% Discount
Spend £500 or More (excluding VAT)
Get a Huge 15% Discount
Spend £1000 or More (excluding VAT)
Get a Massive 20% Discount
FAQs
- "Spend" Means for an Overall Order (Not per Item)
- Our Site Will Automatically Apply Your Discount For You
- UK Mainland (excluding Scottish Highlands & Islands)
- All orders over £50 (before vat) are Free Delivery
- All orders under £50 (before vat) are at £5.95 (+ vat)
- Scottish Highlands & Islands (Ex Shetland)
- All deliveries would be £20 (+ vat)
- Northern Ireland
- All deliveries would be £25 (+ vat)
- Isle of Wight
- All deliveries would be £15 (+ vat)
- Isles of Scilly
- All deliveries would be £20 (+ vat)
- Isle of Mann, Jersey & Guernsey
- All deliveries would be £20 (+ vat)
- Southern Ireland & Shetland
- Please contact us here or call us on 0114 256 0889
- Rest of the World
- Please contact us here
Our price is for the total amount of pieces your entire order needs to be cut into:
For Example
- Buy 1 sheet/rod and have it cut into 15 pieces = £10
- Buy 3 sheets/rods and have each one cut into say 5 pieces (total = 15 pieces) = £10
What to do:
- Click the "Cutting" tab in our menu to visit the cutting section (if you're not already there)
- Click the "Buy Now" button of whichever quantity corresponds to your needs
- See bottom of this page, on how to advise your sizes and any notes
Want more than 300 pieces?
Please give our sales team a call on 0114 2560889
Notes/tips:
- Please allow at least 4mm in your cutting allowance calculations for the width of the saw cut
- We use table saws and horizontal band-saws, so edges will have a sawn finish
- We only use sawing equipment, so we are unable to offer high precision items
- Tolerances are +2mm to minus 0mm
- We aim to cut as squarely as possible although incoming materials are sometimes out of square
- We are unable to cut or machine shapes but we are happy to obtain a custom quotation for machined
shapes or parts (please call us on 0114 2560889)
How to advise your sizes:
- Please checkout your basket/cart
- Fill in your details as usual on the checkout page
- At section 5 of our checkout page, there's a "customer notes" box for you
- Please enter your sizes and any notes for us there
PTFE Rod Tolerances
Manufacturers produce engineering plastics that are slightly oversize in either diameter and/or thickness.
This oversize tolerance, which is listed in the tables below, is provided to assist customers to produce
very accurate items within the size shown and remove any minor surface imperfection.
|
|

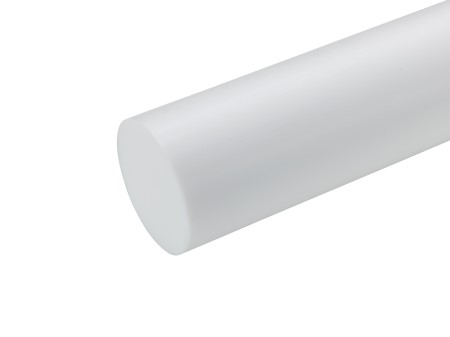

PTFE Rod
Product Information
Product Full Identity:
Polyetrafluorethylene
Properties
- Melting point: 327°C
- Shore hardness: Shore D
- Thermal conductivity: 0.20 J(g*K)
Coefficient of friction is incredibly low.
Maximum working temperature of +260°C (+300°C for short periods)
Minimum working temperature -260°C
Outstanding electrical insulation properties
Minimal moisture absorption
Highly Chemical & Acid resistant.
Highly UV resistant
PTFE is one of the most thermally stable plastic materials.
Food approved & non toxic
Maximum working temperature of +260°C (+300°C for short periods)
Minimum working temperature -260°C
Outstanding electrical insulation properties
Minimal moisture absorption
Highly Chemical & Acid resistant.
Highly UV resistant
PTFE is one of the most thermally stable plastic materials.
Food approved & non toxic
PTFE rod is quite soft
It more expensive than nylon/acetal etc
It’s a heavy material in comparison to other plastics
It more expensive than nylon/acetal etc
It’s a heavy material in comparison to other plastics
Products made with PTFE have exceptional resistance to high and low temperatures, chemical reaction, corrosion, and stress-cracking. The electrical and low-friction properties of PTFE make it the preferred plastic for a host of applications.
Owing to its low friction, PTFE is used for applications where sliding action of parts is needed:
Plain bearings
Gears
Seals
Cryogenic applications, etc.
In low friction applications, it performs significantly better than nylon and acetal; it is comparable to ultra-high-molecular-weight polyethylene (UHMWPE), although UHMWPE is more resistant to wear than PTFE.
It’s extremely high bulk resistivity makes it an ideal material for fabricating long-life electrets, useful devices that are the electrostatic analogues of magnets.
Plain bearings
Gears
Seals
Cryogenic applications, etc.
In low friction applications, it performs significantly better than nylon and acetal; it is comparable to ultra-high-molecular-weight polyethylene (UHMWPE), although UHMWPE is more resistant to wear than PTFE.
It’s extremely high bulk resistivity makes it an ideal material for fabricating long-life electrets, useful devices that are the electrostatic analogues of magnets.
Because of its softness, inherent low friction and resulting “slipperiness”, PTFE can be difficult to chuck and hold tight in a lathe, it can crush and/or distort. It is also recommended to use a high speed lathe and sharp tools, and slow movement. Another consideration is the long strings of swarf, which can wrap around tooling.
PTFE must undergo surface preparation prior to bonding, such as a flame, corona discharge or plasma treatment or etching, e.g. using a solution of sodium and naphthalene in tetrahydrofuran. Adhesive companies produce proprietary primers also. Once the surface is prepared, a number of adhesives can be used including, epoxies, polyurethanes, acrylics and rubber based adhesives. Companies such as Loctite and 3M have developed specialist acrylic based adhesives that bond directly to PTFE with no need for pre-treatment other than a preliminary solvent wipe.
The most common food grade use of PTFE is DuPont’s Teflon® lining for cookware.
Due to its softness, Its wear resistance depends upon the severity of the abrasiveness and the speed and loads, but if any of these are high then PTFE rod’s wear resistance may be compromised. The wear resistance of other materials and Plastics can be considerably improved by using PTFE as filler.
PTFE is practically inert against known elements and compounds. It is attacked only by the alkaline metals in the elementary state, by Chlorine trifluoride and by elementary Fluorine at high temperatures and pressures.
PTFE is insoluble in almost all solvents at temperatures up to about 300°C. Fluorinated hydrocarbons cause a certain swelling which is however reversible and some highly fluorinated oils, at temperatures over 300°C, exercise a certain dissolving effect upon PTFE.
PTFE is insoluble in almost all solvents at temperatures up to about 300°C. Fluorinated hydrocarbons cause a certain swelling which is however reversible and some highly fluorinated oils, at temperatures over 300°C, exercise a certain dissolving effect upon PTFE.
PTFE is the only known surface to which a gecko cannot stick.
Teflon ® (DuPont)
PTFE rod is available in white (natural) and in diameters ranging from 4mm up to 120mm. Larger sizes are available by contacting our sales team on 0114 2560889
Dangerous when heated above 400°C. It has been established that PTFE may be hazardous while being machined if PTFE dust or shavings are exposed to extremely high temperatures, such as lit cigarettes. PTFE decomposes to yield highly toxic fumes of fluorides and, as a result, inhalation of PTFE dust through a lighted cigarette could be injurious to health.
PTFE rod offers high chemical resistance, low and high temperature capability, resistance to weathering, low friction, electrical and thermal insulation, and "slipperiness"
PTFE was the first fluorocarbon. It is the most chemically resistant plastic known. Only a few chemicals react with it. Its mechanical properties are low compared to other engineering plastics, but its properties remain at a useful level over a greater temperature range, from-240°C to 260°C. PTFE has excellent thermal and electrical insulation properties. And, it has a low coefficient of friction. It is difficult to make anything adhere to PTFE. Without proper preparation, a material may stick to it, but the material can be peeled off or rubbed off.
Availability Guide
| Diameter | Length | PTFE |
|---|---|---|
| 4mm | 250mm | |
| 4mm | 500mm | |
| 4mm | 1000mm | |
| 4mm | 2000mm | |
| 5mm | 250mm | |
| 5mm | 500mm | |
| 5mm | 1000mm | |
| 5mm | 2000mm | |
| 6mm | 250mm | |
| 6mm | 500mm | |
| 6mm | 1000mm | |
| 6mm | 2000mm | |
| 8mm | 250mm | |
| 8mm | 500mm | |
| 8mm | 1000mm | |
| 8mm | 2000mm | |
| 10mm | 250mm | |
| 10mm | 500mm | |
| 10mm | 1000mm | |
| 10mm | 2000mm | |
| 12mm | 250mm | |
| 12mm | 500mm | |
| 12mm | 1000mm | |
| 12mm | 2000mm | |
| 15mm | 250mm | |
| 15mm | 500mm | |
| 15mm | 1000mm | |
| 15mm | 2000mm | |
| 20mm | 250mm | |
| 20mm | 500mm | |
| 20mm | 1000mm | |
| 20mm | 2000mm | |
| 22mm | 250mm | |
| 22mm | 500mm | |
| 22mm | 1000mm | |
| 22mm | 2000mm | |
| 25mm | 250mm | |
| 25mm | 500mm | |
| 25mm | 1000mm | |
| 25mm | 2000mm | |
| 30mm | 250mm | |
| 30mm | 500mm | |
| 30mm | 1000mm | |
| 30mm | 2000mm | |
| 35mm | 250mm | |
| 35mm | 500mm | |
| 35mm | 1000mm | |
| 35mm | 2000mm | |
| 40mm | 250mm | |
| 40mm | 500mm | |
| 40mm | 1000mm | |
| 40mm | 2000mm | |
| 45mm | 250mm | |
| 45mm | 500mm | |
| 45mm | 1000mm | |
| 45mm | 2000mm | |
| 50mm | 250mm | |
| 50mm | 500mm | |
| 50mm | 1000mm | |
| 50mm | 2000mm | |
| 55mm | 250mm | |
| 55mm | 500mm | |
| 55mm | 1000mm | |
| 55mm | 2000mm | |
| 60mm | 250mm | |
| 60mm | 500mm | |
| 60mm | 1000mm | |
| 60mm | 2000mm | |
| 65mm | 250mm | |
| 65mm | 500mm | |
| 65mm | 1000mm | |
| 65mm | 2000mm | |
| 70mm | 250mm | |
| 70mm | 500mm | |
| 70mm | 1000mm | |
| 70mm | 2000mm | |
| 75mm | 250mm | |
| 75mm | 500mm | |
| 75mm | 1000mm | |
| 75mm | 2000mm | |
| 80mm | 250mm | |
| 80mm | 500mm | |
| 80mm | 1000mm | |
| 80mm | 2000mm | |
| 90mm | 250mm | |
| 90mm | 500mm | |
| 90mm | 1000mm | |
| 90mm | 2000mm | |
| 100mm | 250mm | |
| 100mm | 500mm | |
| 100mm | 1000mm | |
| 100mm | 2000mm | |
| 110mm | 250mm | |
| 110mm | 500mm | |
| 110mm | 1000mm | |
| 110mm | 2000mm | |
| 120mm | 250mm | |
| 120mm | 500mm | |
| 120mm | 1000mm | |
| 120mm | 2000mm |
