Select the Grade you require:
Please select the product you require
Whale Tufnol Rod 10mm dia x 300mm
Our Price: £14.69 (£17.63 inc VAT)
Whale Tufnol Rod 12mm dia x 300mm
Our Price: £18.92 (£22.70 inc VAT)
Whale Tufnol Rod 20mm dia x 300mm
Our Price: £25.42 (£30.50 inc VAT)
Whale Tufnol Rod 10mm dia x 600mm
Our Price: £26.71 (£32.05 inc VAT)
Whale Tufnol Rod 12mm dia x 600mm
Our Price: £34.40 (£41.28 inc VAT)
Whale Tufnol Rod 20mm dia x 600mm
Our Price: £46.22 (£55.46 inc VAT)
Whale Tufnol Rod 10mm dia x 1220mm
Our Price: £50.87 (£61.04 inc VAT)
Whale Tufnol Rod 12mm dia x 1220mm
Our Price: £65.53 (£78.64 inc VAT)
Whale Tufnol Rod 50mm dia x 150mm
Our Price: £69.33 (£83.20 inc VAT)
Whale Tufnol Rod 55mm dia x 150mm
Our Price: £83.89 (£100.67 inc VAT)
Whale Tufnol Rod 20mm dia x 1220mm
Our Price: £88.03 (£105.64 inc VAT)
Whale Tufnol Rod 60mm dia x 150mm
Our Price: £88.41 (£106.09 inc VAT)
Whale Tufnol Rod 45mm dia x 300mm
Our Price: £99.01 (£118.81 inc VAT)
Whale Tufnol Rod 50mm dia x 300mm
Our Price: £126.06 (£151.27 inc VAT)
Whale Tufnol Rod 75mm dia x 150mm
Our Price: £126.75 (£152.10 inc VAT)
Whale Tufnol Rod 55mm dia x 300mm
Our Price: £152.52 (£183.02 inc VAT)
Whale Tufnol Rod 60mm dia x 300mm
Our Price: £160.74 (£192.89 inc VAT)
Whale Tufnol Rod 90mm dia x 150mm
Our Price: £176.12 (£211.34 inc VAT)
Whale Tufnol Rod 45mm dia x 600mm
Our Price: £180.02 (£216.02 inc VAT)
Whale Tufnol Rod 100mm dia x 150mm
Our Price: £210.76 (£252.91 inc VAT)
Whale Tufnol Rod 75mm dia x 300mm
Our Price: £230.46 (£276.55 inc VAT)
Whale Tufnol Rod 50mm dia x 600mm
Our Price: £240.11 (£288.13 inc VAT)
Whale Tufnol Rod 55mm dia x 600mm
Our Price: £290.52 (£348.62 inc VAT)
Whale Tufnol Rod 60mm dia x 600mm
Our Price: £306.17 (£367.40 inc VAT)
Whale Tufnol Rod 90mm dia x 300mm
Our Price: £320.21 (£384.25 inc VAT)
Whale Tufnol Rod 45mm dia x 1220mm
Our Price: £342.89 (£411.47 inc VAT)
Whale Tufnol Rod 100mm dia x 300mm
Our Price: £383.20 (£459.84 inc VAT)
Whale Tufnol Rod 75mm dia x 600mm
Our Price: £438.97 (£526.76 inc VAT)
Whale Tufnol Rod 50mm dia x 1220mm
Our Price: £457.35 (£548.82 inc VAT)
Whale Tufnol Rod 55mm dia x 1220mm
Our Price: £553.37 (£664.04 inc VAT)
Whale Tufnol Rod 60mm dia x 1220mm
Our Price: £583.18 (£699.82 inc VAT)
Whale Tufnol Rod 90mm dia x 600mm
Our Price: £609.93 (£731.92 inc VAT)
Whale Tufnol Rod 100mm dia x 600mm
Our Price: £729.91 (£875.89 inc VAT)
Whale Tufnol Rod 75mm dia x 1220mm
Our Price: £836.13 (£1,003.36 inc VAT)
Whale Tufnol Rod 90mm dia x 1220mm
Our Price: £1,161.77 (£1,394.12 inc VAT)
Whale Tufnol Rod 100mm dia x 1220mm
Our Price: £1,390.30 (£1,668.36 inc VAT)
Spend £99 or More (excluding VAT)
Get it Delivered Free* (*Details Here)
Spend £100 or More (excluding VAT)
Get a Nice 5% Discount
Spend £250 or More (excluding VAT)
Get a Bigger 10% Discount
Spend £500 or More (excluding VAT)
Get a Huge 15% Discount
Spend £1000 or More (excluding VAT)
Get a Massive 20% Discount
FAQs
- "Spend" Means for an Overall Order (Not per Item)
- Our Site Will Automatically Apply Your Discount For You
- UK Mainland (excluding Scottish Highlands & Islands)
- All orders over £99 (before vat) are Free Delivery
- All orders under £99 (before vat) are at £5.95 (+ vat)
- Scottish Highlands & Islands (Ex Shetland)
- All deliveries would be £20 (+ vat)
- Northern Ireland
- All deliveries would be £25 (+ vat)
- Isle of Wight
- All deliveries would be £15 (+ vat)
- Isles of Scilly
- All deliveries would be £20 (+ vat)
- Isle of Mann, Jersey & Guernsey
- All deliveries would be £20 (+ vat)
- Southern Ireland & Shetland
- Please contact us here or call us on 0114 256 0889
- Rest of the World
- Please contact us here
Our price is for the total amount of pieces your entire order needs to be cut into:
For Example
- Buy 1 sheet/rod and have it cut into 15 pieces = £10
- Buy 3 sheets/rods and have each one cut into say 5 pieces (total = 15 pieces) = £10
What to do:
- Click the "Cutting" tab in our menu to visit the cutting section (if you're not already there)
- Click the "Buy Now" button of whichever quantity corresponds to your needs
- See bottom of this page, on how to advise your sizes and any notes
Want more than 300 pieces?
Please give our sales team a call on 0114 2560889
Notes/tips:
- Please allow at least 4mm in your cutting allowance calculations for the width of the saw cut
- We use table saws and horizontal band-saws, so edges will have a sawn finish
- We only use sawing equipment, so we are unable to offer high precision items
- Tolerances are +2mm to minus 0mm
- We aim to cut as squarely as possible although incoming materials are sometimes out of square
- We are unable to cut or machine shapes but we are happy to obtain a custom quotation for machined
shapes or parts (please call us on 0114 2560889)
How to advise your sizes:
- Please checkout your basket/cart
- Fill in your details as usual on the checkout page
- At section 5 of our checkout page, there's a "customer notes" box for you
- Please enter your sizes and any notes for us there
Tufnol Rod Tolerances
Manufacturers produce engineering plastics that are slightly oversize in either diameter and/or thickness.
This oversize tolerance, which is listed in the tables below, is provided to assist customers to produce
very accurate items within the size shown and remove any minor surface imperfection.
|
|
Tufnol Rod
Product Information
Product Full Identity:
SRBF - Synthetic Resin Bonded Fabric
Mechanical Properties
- Density: 1.36(sheet) 1.35(rod)/cm³
- Tensile strength: 68 MPa
- Cross breaking strength: 130 MPa
- Compressive strength (flatwise): 310 MPa
- Compressive strength (edgewise): 200 MPa
Thermal Properties
- Maximum working temperature – continuous: 120°C
- Maximum working temperature – intermittent: 130°C
- Specific heat: 1.5 kJ/kgK)

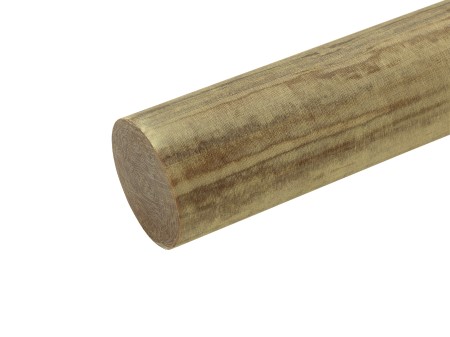

Whale Tufnol Rod is medium weave cotton and phenolic resin laminated plastic material. It is the grade specifically designed for mechanical engineering purposes. It is suitable for wear resistant components such as bearings, bushes, spacers and low voltage applications. Tufnol Rod is dimensionally very stable and can be either run dry or lubricated with water, oils or grease. It has excellent all round physical properties with rigidity, strength, good toughness and wear resistance.
Rigidity with high strength and low weight
Good electrical and thermal insulation properties
Its maximum working temperature is around 120 to 130 degrees. (higher than nylon)
Doesn’t degenerate at higher temperatures like nylon and other plastics
It is non-corrosive and can reduce corrosion in metal parts
Resistant to heavy loads with minimal creep
Excellent weather resistance and good resistance to chemicals, oils, solvents and hydrocarbons.
Good electrical and thermal insulation properties
Its maximum working temperature is around 120 to 130 degrees. (higher than nylon)
Doesn’t degenerate at higher temperatures like nylon and other plastics
It is non-corrosive and can reduce corrosion in metal parts
Resistant to heavy loads with minimal creep
Excellent weather resistance and good resistance to chemicals, oils, solvents and hydrocarbons.
It’s not suitable for washers or gears.
Only for low voltages applications
Quite dusty when being machined
Difficult to produce very intricate or delicate parts
Only for low voltages applications
Quite dusty when being machined
Difficult to produce very intricate or delicate parts
Because of the way Whale Tufnol rod material is made, it’s a bit like plywood in that it is quite rigid – as much as twice that of nylon. In fact, it is this inherent rigidity with that diminishes creep. Supposing you made two flanges, one from nylon and the other from Whale Tufnol rod, and bolted a lid down onto each. After applying about 50 ft. lbs. of torque to the bolts, the lid on the nylon flange would over time, eventually loosen as the nylon creeps. The bolts on the Tufnol side would stay roughly the same.
Whale rod is a most useful general purpose material and is the most popular grade for a wide range of mechanical applications and general uses, such as spacers, rollers, jigs and fixtures, wear resistant components, low voltage insulation and many others.
Whale Tufnol rod is not suitable for circuit boards parts, covers and high electrical insulation.
Whale Tufnol Rod material cannot melted to re-shape it, so finished components are made by machining using ordinary machine tools such as saws, drills, lathes, milling machines, or high-speed computer-controlled CNC machines. It is easily machined to produce finished components. A disadvantage when machining Whale Tufnol is that it is quite dusty, and prolonged drilling may cause the material to melt and adhere to the bit. In addition, because of its plywood-like construction, more delicate machined components are subject to shearing.
While Whale Tufnol can be bonded to a variety of materials, the selection of adhesive is dependent on the material its being bonded to. But araldite, epoxy and contact adhesives are all successful
Tufnol should not be used in any food applications where it may come into contact with food products.
Whale Tufnol rod has good wear resistance and toughness.
Whale Tufnol has good resistance to chemicals, oils, solvents and hydrocarbons although concentrated acids and alkalis will attack laminates.
Whale Tufnol is made primarily of cotton sheets and phenolic chemical resin. Pre-soaked and cured cotton sheets are tightly wrapped over each other until the desired diameter is achieved. Afterwards, these are then strongly bonded together, in a rod mould and under high pressure in a hot press, being crushed essentially, with up to three tonnes of pressure and then cured. A finished rod of 25mm, for example, will have begun its life at maybe 35mm diameter before undergoing the press!
Tufnol Whale rod is available in brown (light tan colour) and in diameters ranging from 6mm up to 100mm. larger diameters are available, please contact our sales team on 0114 2560889
Whale Tufnol is a non-metallic material with very useful properties. It is hard, rigid, strong, and lightweight – about a fifth of the weight of steel and half the weight of aluminium. It is a good electrical insulator and is also resistant to long-term immersion in water. It is exceptionally resistant to weathering, much more so than most other plastics, and it has been used for components in outdoor, aircraft and marine environments for many decades without corroding or degrading. This grade is very resistant to wear in applications involving friction, and can be lubricated with water as well as oil or other conventional lubricants. This makes it extremely useful in marine applications.
A downside to the production process is that because it is essentially “wrapped” or “layered” with many laminations, its unsuitable for making gears or washers from. Imagine a Swiss roll, the teeth would have limited strength and a washer would just push through.
Whale Tufnol is a cotton fabric laminate made from medium weave cotton and phenolic resin laminated plastic. It is a good, general-purpose medium weave grade for mechanical applications. It has good all round physical properties with excellent rigidity compared with other plastics, good strength, good toughness and high wear resistance. It is used for electrical insulation at low voltages only, and is not suitable for gears or washers.
Availability Guide
| Diameter | Length | Tufnol Whale |
|---|---|---|
| 10mm | 150mm | |
| 10mm | 300mm | |
| 10mm | 600mm | |
| 10mm | 1220mm | |
| 12mm | 150mm | |
| 12mm | 300mm | |
| 12mm | 600mm | |
| 12mm | 1220mm | |
| 20mm | 150mm | |
| 20mm | 300mm | |
| 20mm | 600mm | |
| 20mm | 1220mm | |
| 45mm | 150mm | |
| 45mm | 300mm | |
| 45mm | 600mm | |
| 45mm | 1220mm | |
| 50mm | 150mm | |
| 50mm | 300mm | |
| 50mm | 600mm | |
| 50mm | 1220mm | |
| 55mm | 150mm | |
| 55mm | 300mm | |
| 55mm | 600mm | |
| 55mm | 1220mm | |
| 60mm | 150mm | |
| 60mm | 300mm | |
| 60mm | 600mm | |
| 60mm | 1220mm | |
| 75mm | 150mm | |
| 75mm | 300mm | |
| 75mm | 600mm | |
| 75mm | 1220mm | |
| 90mm | 150mm | |
| 90mm | 300mm | |
| 90mm | 600mm | |
| 90mm | 1220mm | |
| 100mm | 150mm | |
| 100mm | 300mm | |
| 100mm | 600mm | |
| 100mm | 1220mm |
