Select the Colour you require:
Please select the product you require
Peek Sheet 250 x 250 x 5mm
Our Price: £131.87 (£158.24 inc VAT)
Peek Sheet 250 x 250 x 6mm
Our Price: £155.97 (£187.16 inc VAT)
Peek Sheet 250 x 250 x 8mm
Our Price: £207.02 (£248.42 inc VAT)
Peek Sheet 500 x 250 x 5mm
Our Price: £239.76 (£287.71 inc VAT)
Peek Sheet 250 x 250 x 10mm
Our Price: £255.22 (£306.26 inc VAT)
Peek Sheet 500 x 250 x 6mm
Our Price: £283.58 (£340.30 inc VAT)
Peek Sheet 250 x 250 x 12mm
Our Price: £312.30 (£374.76 inc VAT)
Peek Sheet 500 x 250 x 8mm
Our Price: £376.39 (£451.67 inc VAT)
Peek Sheet 250 x 250 x 16mm
Our Price: £409.07 (£490.88 inc VAT)
Peek Sheet 500 x 500 x 5mm
Our Price: £456.69 (£548.03 inc VAT)
Peek Sheet 500 x 250 x 10mm
Our Price: £464.05 (£556.86 inc VAT)
Peek Sheet 250 x 250 x 20mm
Our Price: £505.85 (£607.02 inc VAT)
Peek Sheet 500 x 500 x 6mm
Our Price: £540.16 (£648.19 inc VAT)
Peek Sheet 500 x 250 x 12mm
Our Price: £567.82 (£681.38 inc VAT)
Peek Sheet 250 x 250 x 25mm
Our Price: £627.08 (£752.50 inc VAT)
Peek Sheet 500 x 500 x 8mm
Our Price: £716.94 (£860.33 inc VAT)
Peek Sheet 500 x 250 x 16mm
Our Price: £743.77 (£892.52 inc VAT)
Peek Sheet 250 x 250 x 30mm
Our Price: £762.49 (£914.99 inc VAT)
Peek Sheet 1000 x 500 x 5mm
Our Price: £869.88 (£1,043.86 inc VAT)
Peek Sheet 500 x 500 x 10mm
Our Price: £883.91 (£1,060.69 inc VAT)
Peek Sheet 250 x 250 x 36mm
Our Price: £907.46 (£1,088.95 inc VAT)
Peek Sheet 500 x 250 x 20mm
Our Price: £919.73 (£1,103.68 inc VAT)
Peek Sheet 250 x 150 x 100mm
Our Price: £941.40 (£1,129.68 inc VAT)
Peek Sheet 250 x 250 x 40mm
Our Price: £1,003.19 (£1,203.83 inc VAT)
Peek Sheet 1000 x 500 x 6mm
Our Price: £1,028.87 (£1,234.64 inc VAT)
Peek Sheet 500 x 500 x 12mm
Our Price: £1,081.55 (£1,297.86 inc VAT)
Peek Sheet 500 x 250 x 25mm
Our Price: £1,140.14 (£1,368.17 inc VAT)
Peek Sheet 250 x 250 x 50mm
Our Price: £1,247.78 (£1,497.34 inc VAT)
Peek Sheet 1000 x 500 x 8mm
Our Price: £1,365.61 (£1,638.73 inc VAT)
Peek Sheet 500 x 250 x 30mm
Our Price: £1,386.35 (£1,663.62 inc VAT)
Peek Sheet 500 x 500 x 16mm
Our Price: £1,416.70 (£1,700.04 inc VAT)
Peek Sheet 250 x 250 x 60mm
Our Price: £1,499.46 (£1,799.35 inc VAT)
Peek Sheet 500 x 250 x 36mm
Our Price: £1,649.94 (£1,979.93 inc VAT)
Peek Sheet 1000 x 500 x 10mm
Our Price: £1,683.63 (£2,020.36 inc VAT)
Peek Sheet 250 x 300 x 100mm
Our Price: £1,711.64 (£2,053.97 inc VAT)
Peek Sheet 500 x 500 x 20mm
Our Price: £1,751.85 (£2,102.22 inc VAT)
Peek Sheet 500 x 250 x 40mm
Our Price: £1,823.98 (£2,188.78 inc VAT)
Peek Sheet 250 x 250 x 80mm
Our Price: £2,002.82 (£2,403.38 inc VAT)
Peek Sheet 1000 x 500 x 12mm
Our Price: £2,060.10 (£2,472.12 inc VAT)
Peek Sheet 500 x 500 x 25mm
Our Price: £2,171.70 (£2,606.04 inc VAT)
Peek Sheet 500 x 250 x 50mm
Our Price: £2,268.68 (£2,722.42 inc VAT)
Peek Sheet 500 x 500 x 30mm
Our Price: £2,640.67 (£3,168.80 inc VAT)
Peek Sheet 1000 x 500 x 16mm
Our Price: £2,698.48 (£3,238.18 inc VAT)
Peek Sheet 500 x 250 x 60mm
Our Price: £2,726.29 (£3,271.55 inc VAT)
Peek Sheet 500 x 500 x 36mm
Our Price: £3,142.74 (£3,771.29 inc VAT)
Peek Sheet 500 x 300 x 100mm
Our Price: £3,260.28 (£3,912.34 inc VAT)
Peek Sheet 1000 x 500 x 20mm
Our Price: £3,336.86 (£4,004.23 inc VAT)
Peek Sheet 500 x 500 x 40mm
Our Price: £3,474.24 (£4,169.09 inc VAT)
Peek Sheet 500 x 250 x 80mm
Our Price: £3,641.51 (£4,369.81 inc VAT)
Peek Sheet 1000 x 500 x 25mm
Our Price: £4,136.58 (£4,963.90 inc VAT)
Peek Sheet 500 x 500 x 50mm
Our Price: £4,321.31 (£5,185.57 inc VAT)
Peek Sheet 1000 x 500 x 30mm
Our Price: £5,029.84 (£6,035.81 inc VAT)
Peek Sheet 500 x 500 x 60mm
Our Price: £5,192.94 (£6,231.53 inc VAT)
Peek Sheet 1000 x 500 x 36mm
Our Price: £5,986.18 (£7,183.42 inc VAT)
Peek Sheet 1000 x 300 x 100mm
Our Price: £6,210.05 (£7,452.06 inc VAT)
Peek Sheet 1000 x 500 x 40mm
Our Price: £6,617.60 (£7,941.12 inc VAT)
Peek Sheet 500 x 500 x 80mm
Our Price: £6,936.20 (£8,323.44 inc VAT)
Peek Sheet 1000 x 500 x 50mm
Our Price: £8,231.06 (£9,877.27 inc VAT)
Peek Sheet 1000 x 500 x 60mm
Our Price: £9,891.32 (£11,869.58 inc VAT)
Peek Sheet 1000 x 500 x 80mm
Our Price: £13,211.79 (£15,854.15 inc VAT)
Spend £99 or More (excluding VAT)
Get it Delivered Free* (*Details Here)
Spend £100 or More (excluding VAT)
Get a Nice 5% Discount
Spend £250 or More (excluding VAT)
Get a Bigger 10% Discount
Spend £500 or More (excluding VAT)
Get a Huge 15% Discount
Spend £1000 or More (excluding VAT)
Get a Massive 20% Discount
FAQs
- "Spend" Means for an Overall Order (Not per Item)
- Our Site Will Automatically Apply Your Discount For You
- UK Mainland (excluding Scottish Highlands & Islands)
- All orders over £99 (before vat) are Free Delivery
- All orders under £99 (before vat) are at £5.95 (+ vat)
- Scottish Highlands & Islands (Ex Shetland)
- All deliveries would be £20 (+ vat)
- Northern Ireland
- All deliveries would be £25 (+ vat)
- Isle of Wight
- All deliveries would be £15 (+ vat)
- Isles of Scilly
- All deliveries would be £20 (+ vat)
- Isle of Mann, Jersey & Guernsey
- All deliveries would be £20 (+ vat)
- Southern Ireland & Shetland
- Please contact us here or call us on 0114 256 0889
- Rest of the World
- Please contact us here
Our price is for the total amount of pieces your entire order needs to be cut into:
For Example
- Buy 1 sheet/rod and have it cut into 15 pieces = £10
- Buy 3 sheets/rods and have each one cut into say 5 pieces (total = 15 pieces) = £10
What to do:
- Click the "Cutting" tab in our menu to visit the cutting section (if you're not already there)
- Click the "Buy Now" button of whichever quantity corresponds to your needs
- See bottom of this page, on how to advise your sizes and any notes
Want more than 300 pieces?
Please give our sales team a call on 0114 2560889
Notes/tips:
- Please allow at least 4mm in your cutting allowance calculations for the width of the saw cut
- We use table saws and horizontal band-saws, so edges will have a sawn finish
- We only use sawing equipment, so we are unable to offer high precision items
- Tolerances are +2mm to minus 0mm
- We aim to cut as squarely as possible although incoming materials are sometimes out of square
- We are unable to cut or machine shapes but we are happy to obtain a custom quotation for machined
shapes or parts (please call us on 0114 2560889)
How to advise your sizes:
- Please checkout your basket/cart
- Fill in your details as usual on the checkout page
- At section 5 of our checkout page, there's a "customer notes" box for you
- Please enter your sizes and any notes for us there
PEEK Sheet Tolerances
Manufacturers produce engineering plastics that are slightly oversize in either diameter and/or thickness.
This oversize tolerance, which is listed in the tables below, is provided to assist customers to produce
very accurate items within the size shown and remove any minor surface imperfection.
|
|

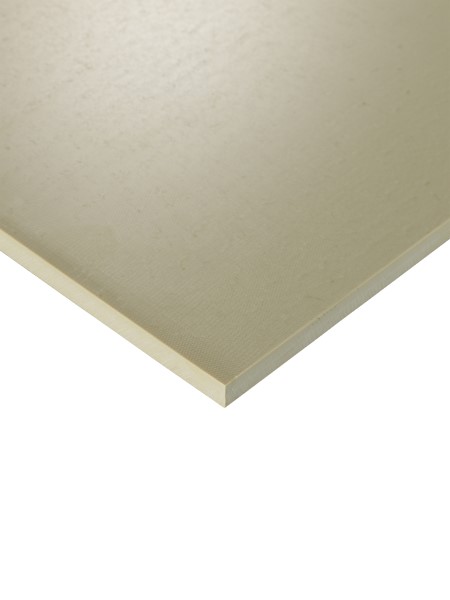

PEEK Sheet
Product Information
Product Full Identity:
Polyetheretherketone
PEEK offers a unique combination of high mechanical properties, temperature resistance (-50°C to +250°c) and excellent chemical resistance, making it the mostpopular advanced plastics material. PEEK is also selfextinguishing according to UL 94 VO and is food compliant.
Properties
- Very stable at high temperatures
- Replaces stainless steel dry running parts
- Excellent Chemical Resistance
- Good resistance to radiation (Gamma & X-Ray)
- Low flammability
- High mechanical strength
- Food compliant
Applications
- Seals
- Back up rings
- Valves
- Medical
- Aerospace
PEEK polymer is considered one of the highest performing materials in the world. PEEK is a semi crystalline thermoplastic known for its unique combination of properties. These include:
Excellent high temperature performance
Chemical and wear resistance
Biocompatible
It has a tensile strength of 90 to 100 MPa
It melts at around 343°C (higher than the melting point of PTFE or PPS)and can be used in high continuous service temperature at 260°C
Highly resistant to thermal degradation as well as attack by both organic and aqueous environments
PEEK is inherently pure
Excellent high temperature performance
Chemical and wear resistance
Biocompatible
It has a tensile strength of 90 to 100 MPa
It melts at around 343°C (higher than the melting point of PTFE or PPS)and can be used in high continuous service temperature at 260°C
Highly resistant to thermal degradation as well as attack by both organic and aqueous environments
PEEK is inherently pure
On the downside there is one big disadvantage and that is the high price of PEEK – almost four times the cost of PTFE for example – which usually limits its application to high value items. In addition, PEEK is not a shape memory polymer.
PEEK sheet material has a high hardness - 53% harder than Acetal – and it has 36% more tensile strength than nylon 6, 6 and is almost 60% stiffer! When it comes to high temperature its short term operating temperature is 300°C - 40 degrees more than PTFE – that’s 15% higher. PEEK also has excellent machine-ability, excellent wear and slide properties, and is flame retardant.
Because of its strength, PEEK is used to make items used in demanding applications, including bearings, piston parts, pumps, HPLC columns, compressor plate valves, and cable insulation. It is one of the few plastics compatible with vacuum applications. It is also used extensively in the aerospace, automotive, and chemical process industries as well as train and underground applications.
PEEK is one of the only polymers that can be used as a metal replacement for high temperature applications. It has become an essential tool for materials engineers in applications when no other material can meet the requirements, such as for the oil and gas industry for drilling as well as production. PEEK is also a superior material for alternative energy production in the construction of solar, wind, nuclear, geothermal and hydropower equipment and components.
PEEK is one of the only polymers that can be used as a metal replacement for high temperature applications. It has become an essential tool for materials engineers in applications when no other material can meet the requirements, such as for the oil and gas industry for drilling as well as production. PEEK is also a superior material for alternative energy production in the construction of solar, wind, nuclear, geothermal and hydropower equipment and components.
The stiffness of PEEK sheet drops off significantly and its expansion rate increases above 150°C. An alternative material such as PAI (polyamide-imide) might be better for close tolerance bearings or seals operating at temperatures higher than 150°C.
The material must be stress-relieved through an annealing process before machining. This decreases the likelihood that surface cracks and internal stresses will form from the heat generated while cutting. Long stretches of machining time may require additional annealing of the work piece before making finishing cuts to prevent crack formation. It is suggested that silicon carbide cutting tools be used for natural PEEK. The best way to avoid adverse effects on the material’s biocompatibility is to machine dry. However, because PEEK doesn’t dissipate heat the way metals do, coolant may sometimes be necessary to remove cutting heat that builds in the work piece. The best coolant is pure water as it is least likely to affect the PEEK’s biocompatibility.
PEEK Sheet is very tricky to bond, it has low surface energy which prevents things like adhesives being able to grab on. Depending on the adhesive used, surface roughening may increase in the bond strengths.
All unfilled PEEK grades comply with FDA regulations for repeated food contact.
PEEK possesses very good abrasion and high wear resistance.
PEEK sheet material is resistant to a wide range of chemicals and solvents.
The radiation resistance of PEEK sheet is quite high for a plastic material. It can absorb over 1000 units of radiation with no appreciable loss of mechanical properties.
Other Trade names (also known as):
Victrex® PEEK
Arlon®
Ketron®
Victrex® PEEK
Arlon®
Ketron®
PEEK sheet material is available in natural (off-white) colour and in sheet thicknesses from 5mm up to 80mm.
PEEK polymer is considered one of the highest performing materials in the world. Because of its robustness, PEEK is used to fabricate items used in demanding applications, including bearings, piston parts, pumps, HPLC columns, compressor plate valves, and cable insulation. It is one of the few plastics compatible with vacuum applications. It is also used extensively in the aerospace, medical, and chemical industries.
While PEEK Sheet is an excellent material for the high-end applications, the cost of PEEK sheet makes it prohibitive for most low-end or low-cost components.
PEEK is a unique, high temperature, high performance engineering plastic. It is tough, rigid, and quite strong with very good chemical and radiation resistance. PEEK can be used for thousands of hours at high temperature in steam or high pressure water environments while showing no significant degradation in. Radiation resistance is also exceptional. During combustion, the levels of smoke and toxic acid gas released are the lowest of any thermoplastic. PEEK is insoluble in all common solvents and has excellent resistance to a very wide range of organic and inorganic liquids, even at higher temperatures.
The PEEK Sheet we supply is 450g grade.
